Dual Air Gap for Water Softener and Reverse Osmosis with 5/8 or 1/2-inch and 3/8 or 1/4-inch inlets, 1-1/2 or 2-inch Standpipe (8500, GAP-CAP, AG130-001)
Dual Air Gap for Water Softener and Reverse Osmosis with 5/8 or 1/2-inch and 3/8 or 1/4-inch inlets, 1-1/2 or 2-inch Standpipe (8500, GAP-CAP, AG130-001)
Couldn't load pickup availability
- 24/7 Customer Support
- Risk-Free 30-Day Returns
- Fast & Reliable U.S. Shipping
Contact Information
Contact Information
30-Day Hassle-Free Returns
30-Day Hassle-Free Returns
Not satisfied? Return your order within 30 days for a full refund or exchange — simple and easy.
✔ Easy return process
✔ Fast refunds
✔ No hidden conditions
Fast U.S. Shipping
Fast U.S. Shipping
We ship within the United States only — no international delays.
✔ Processing time: 1–2 business days
✔ Delivery time: 3–7 business days
✔ Real-time tracking available
👉 Track your order anytime from the header via Track Order
About This

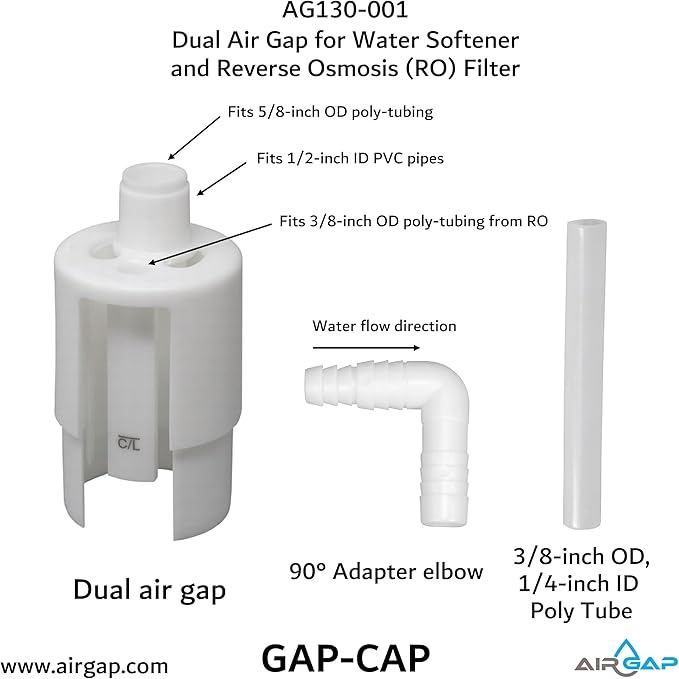

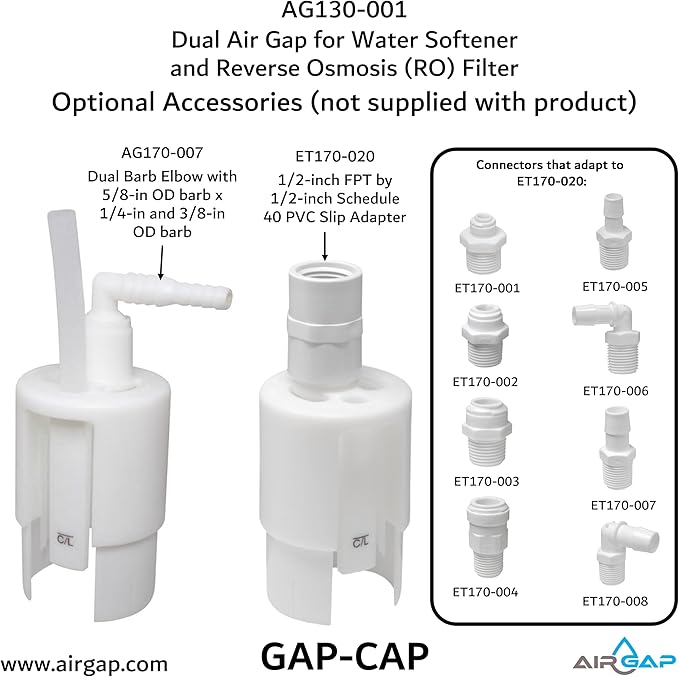

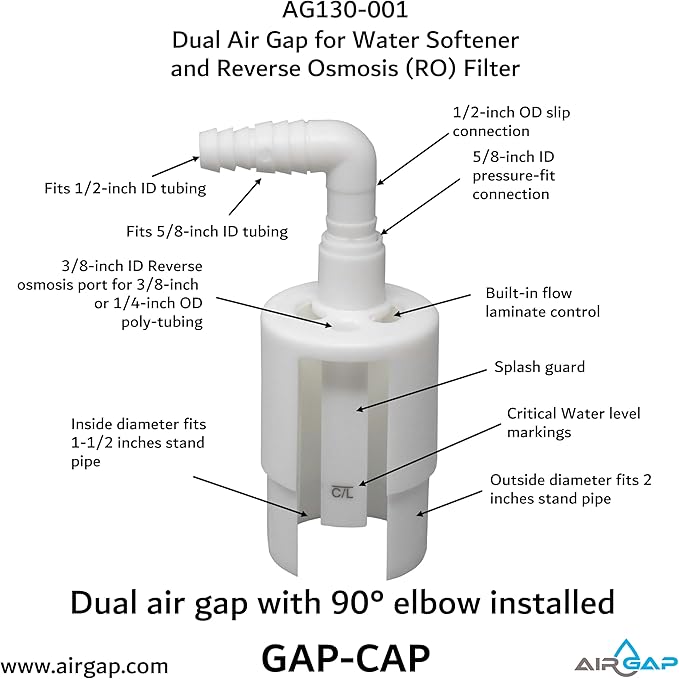

- ♥ EASY TO CONNECT: Gap-Cap air gap (AG130-001) has 1/2-inch OD inlet port for 1/2-inch PVC pipe connection. The 1/2-inch inlet accommodates any 1/2-inch slip joint adapters including a threaded end, barb connection, and a quick connect for PEX tubing. The same inlet accommodates 5/8-inch OD tubing that can be directly inserted into the inlet. A 3/8-inch inlet port is provided for RO systems. This port can accommodate both 3/8-inch poly-tubing and 1/4-inch poly-tubing with included adapter.

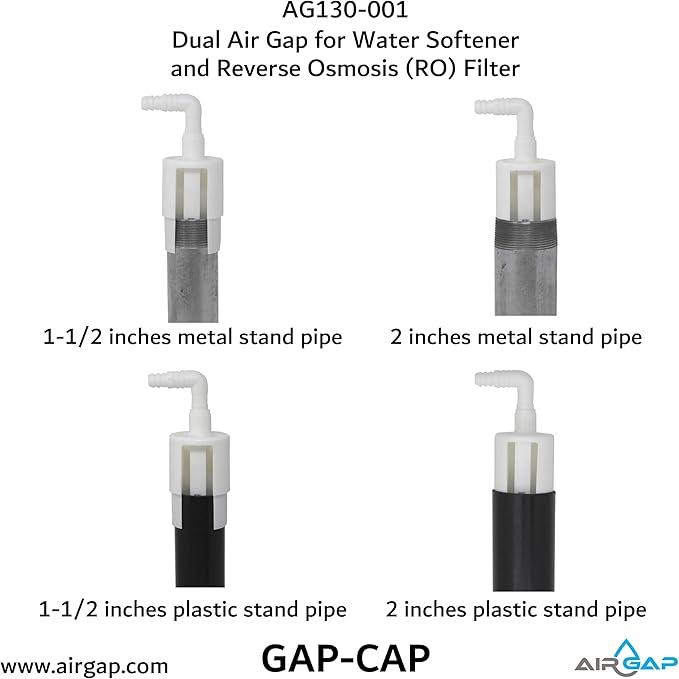

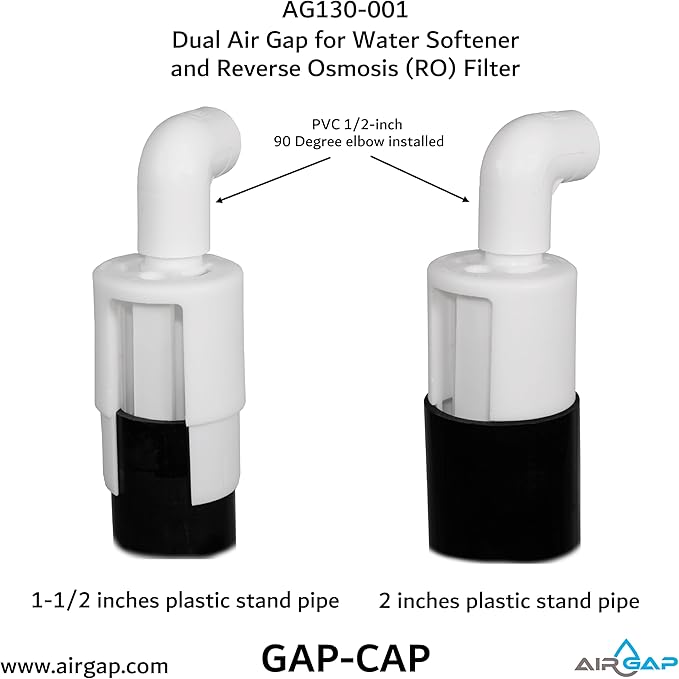

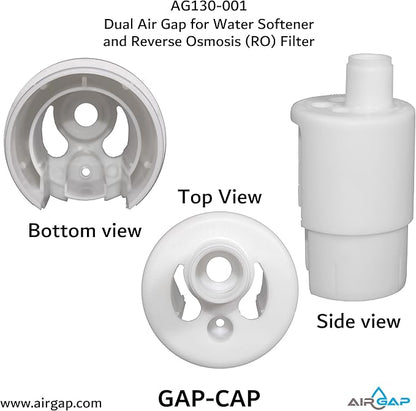

- ♥ STANDPIPE CONNECTION: Gap-Cap air gap (AG130-001) inserts directly into the 1-1/2-inch and 2-inch standpipes. The body of the air gap provides stops to ensure secure placement. This air gap can be used with plastic or metal standpipes. If needed, it can be glued in place with plastic standpipes using regular PVC adhesive. The air gap outlet is designed to pass up to 7 gallons per minute. The optimum recommended flow rate is 4-5 gallons per minute.
- ♥ SPLASH PROTECTION: The AG130-001 air gap uses splash guards to assure a completely dry operation. Splash guards are an integral part of the design and can be seen through the side air gap window. During water softener operation, an initial discharge surge can create splashing. Splash shield eliminates the possibility of water splashing outside of the air gap. When designing drainage for an air gap, makes sure that P-trap is located minimum 20-inches from the top of the standpipe.
- ♥ QUIET OPERATION: When water exits the air gap, depending on the design, it may flow directly into a P-trap. This can create splashing noise that may be objectionable. To avoid excessive noise, it is recommended to use 22 degrees elbow inline with standpipe to avoid direct drainage to P-trap. The pipe elbow should be located at least 12 inches from the air gap to eliminate splashback.
- ♥ CERTIFICATION: The AG130-001 is legal to install in any state. It is UPC (Uniform Plumbing Code) Listed, IPC (International Plumbing Code) and NSF (National Sanitation Foundation) tested. These certifications assure that every product is safe to use. Also, all of the products are tested for strength and to make sure that every glue joint will withstand at least 40lb of force and not break. The testing is conducted for every manufactured lot to ensure consistent performance.
Overview
- Size : 1/2 inch, 3/8 inch
- Material : Plastic
- Brand : AIR GAP INTERNATIONAL
- Color : White

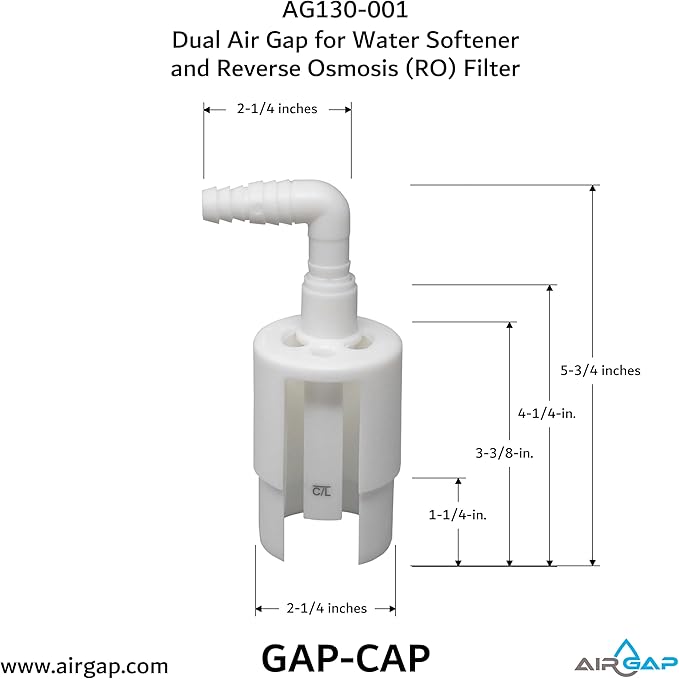

- Item dimensions L x W x H : 4.25 x 2.25 x 2.25 inches
- Connector Type : Threaded-Barb-QuickConnect
- Thread Size : 2.25 inch
- Thread Type : NPT
- Item Weight : 0.1 Kilograms
- Number of Pieces : 1
